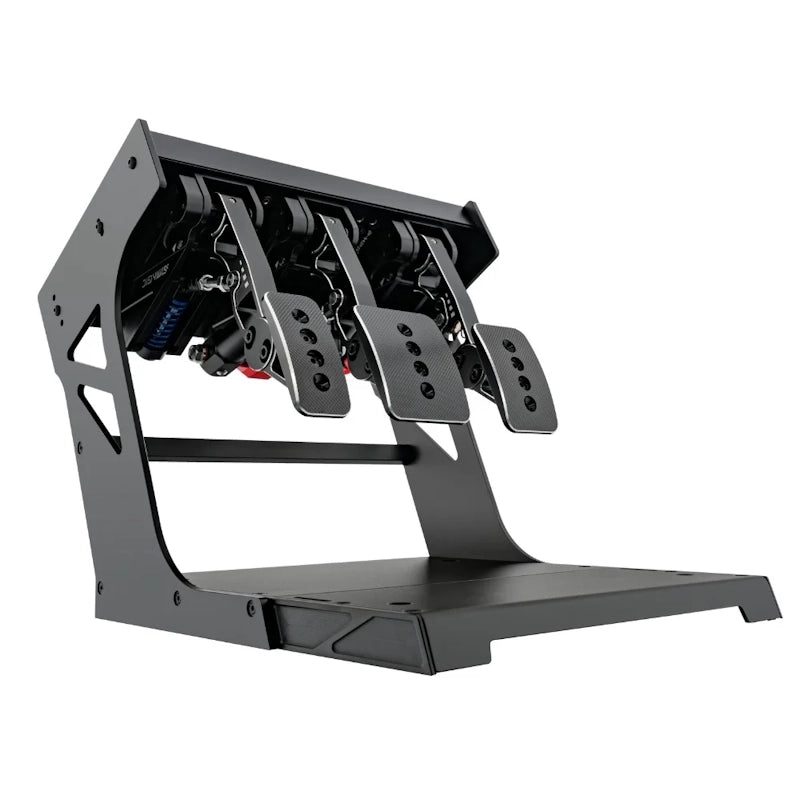

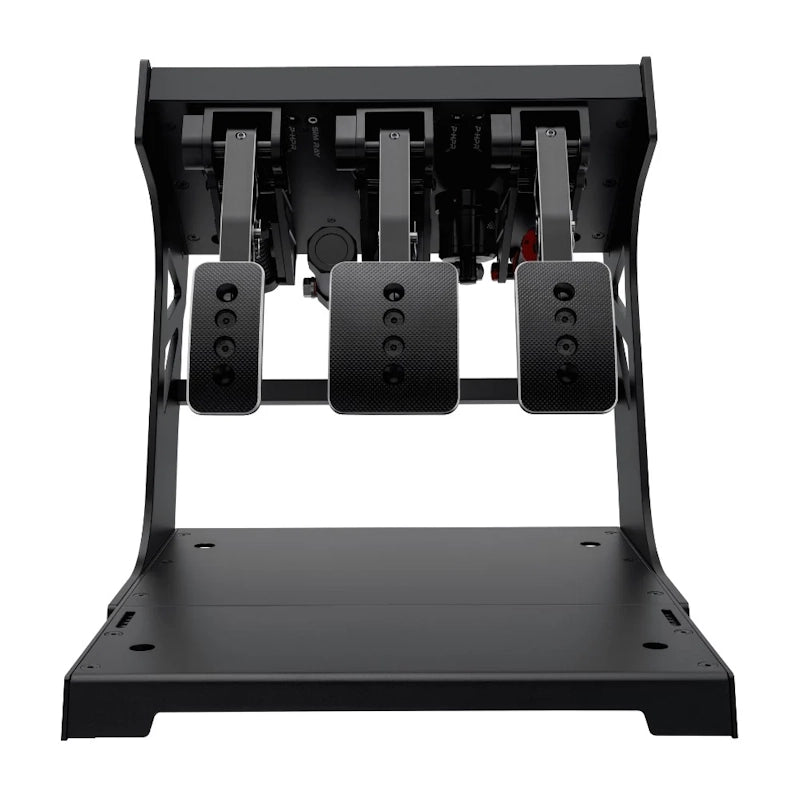

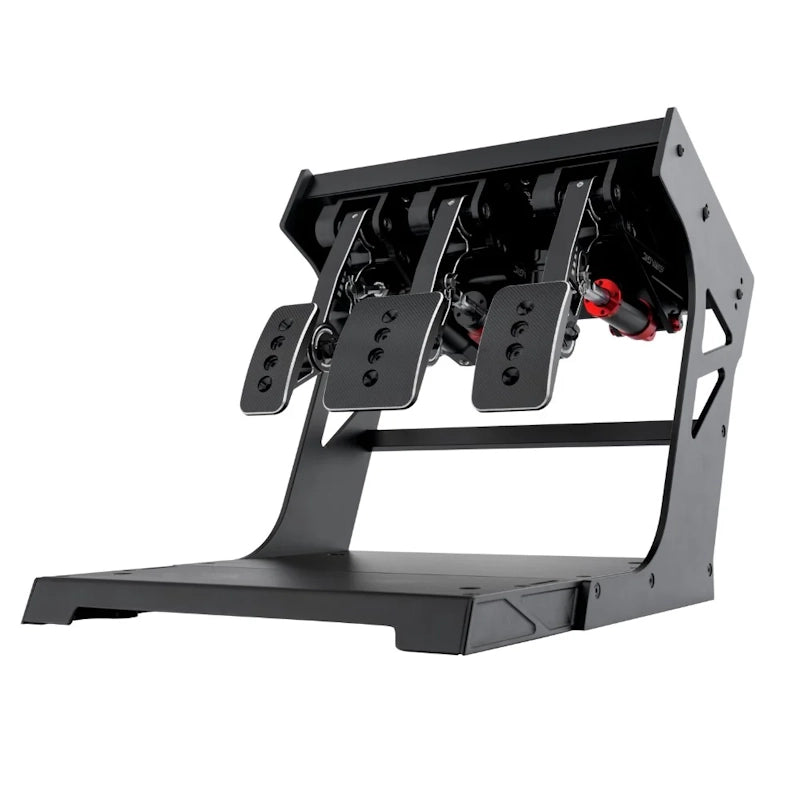

P1000i Hydraulic Modular Pedals Inverted
The new standard in performance.
PRO-LEVEL Design Powerful Race Genes
Jointly developed with race engineers.
Refreshed Design, Simplified Installation.
Installed and ready to race with just 8 screws. Comes complete with profile installation plate and wiring box. Easily matched and installed with finished and profile brackets.
Pedals Built For it All
Standard - Standard installation recreates the racing car experience and meets the demands of competitive driving
Inverted - The Inverted installation recreates the passenger car experience, meeting the needs of more users
Dominate the race track
Load cell sensor and Hall angle sensor ready. Use the Hall angle sensor for long travel, better for standard production cars, or utilize the Load cell sensor for short travel, best for motorsports and formula-style cars.
Full Metal Structure
It's all about the details. Machined aluminum housing, polished and oxidized.
Meticulously crafted for durability
Peak performance, every session
Multiple adjustments
Pedal spacing and height? Fully adjustable, with a throttle that feels weighty.
Whatever your style, just race
Pitch angle, pedal inputs - all configurable.
Product Name
P1000-RS/P1000i-RS
Specifications
- Resolution: 12Bit (4096) [High accuracy sensor]
- USB Connection: PC, Simagic Wheelbase (via Bus Port)
- Adjustable Travel: Supported
- Adjustable Spring Force Level: Clutch, Brake
- Sensors:
- Throttle: Hall angle sensor
- Brake: Hall angle sensor / Loadcell sensor.
- Clutch: Hall angle sensor
- Loadcell sensor: 100KG
- Haptic Pedal Reactor: Optional
- Hydraulic Cylinder: Included
- Inverted Installation: Optional
- Pedal Plate: Anodized Aluminum Alloy
- Angle/Position Adjustment: Supported
- Adjustable Linearity: Supported
- Adjustable Brake Force: Supported
- Adjustable Deadzones: Supported
- Pedal Control Box: Included
- Building Material: CNC Aluminum Alloy
Dimensions
Length x Width x Height:
- 348mm x489.8mm x 368.5mm
Net Weight
5.65kg / 7.60kg
